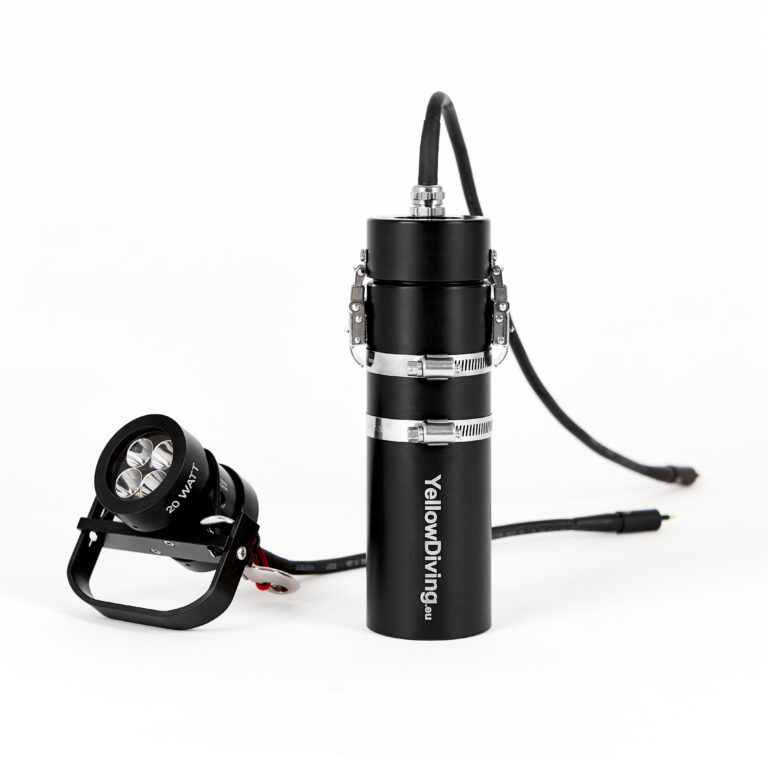

L20 CLASSIC BACKMOUNT

L20 CLASSIC BACKMOUNT

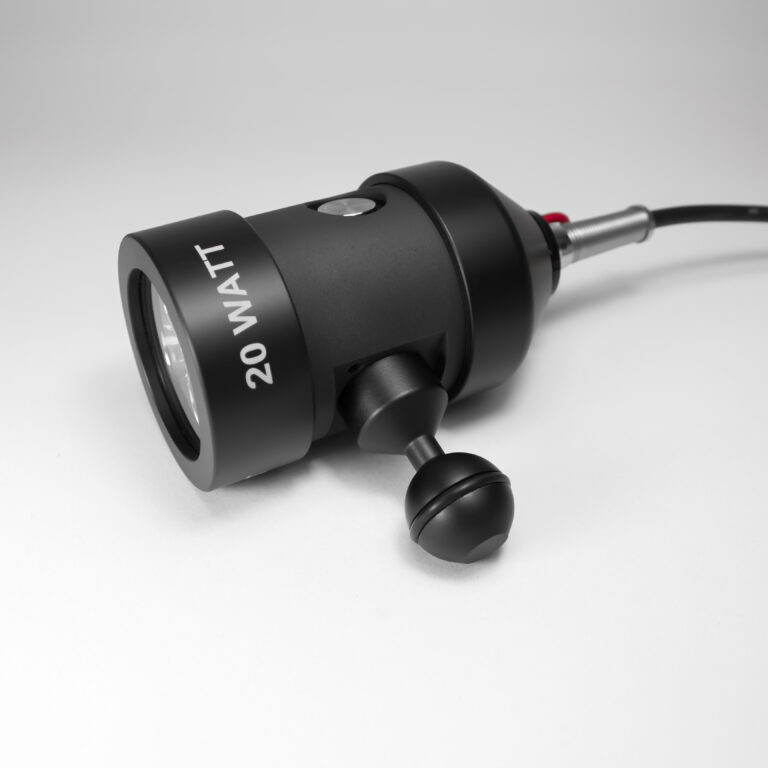

LIGHT HEAD

  • Power: 20W
  • Lighting angle: 10°
  • Color temperature: 6500°K
  • Luminance: 1700lm
  • Battery indicator: shows the level of the battery charge
  • Head dimensions (L x D): 10,5 cm x 6,3 cm
  • Made of: anodised aluminium, Delrin
  • Type of handle: Goodman
  • Max. operating depth: 150m

POWER SUPPLY

  • Backmount configuration
  • Switch type: CLASSIC toggle switch

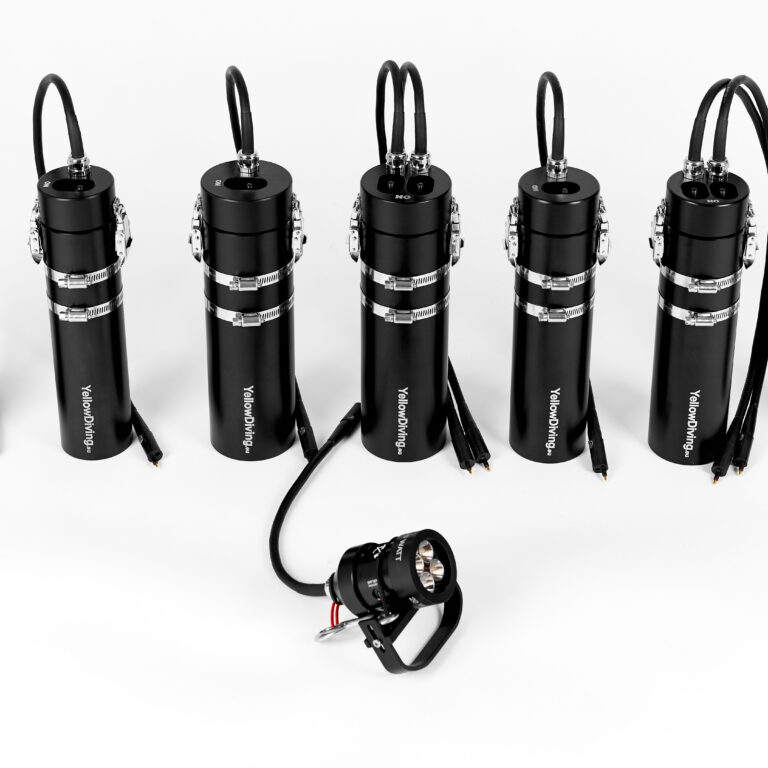

  • Battery pack capacity: 9Ah/15,6Ah/20,8Ah/28Ah/42Ah
  • Completely closed Li-Ion battery
  • Protection against short circuit, overcharging and deep discharge

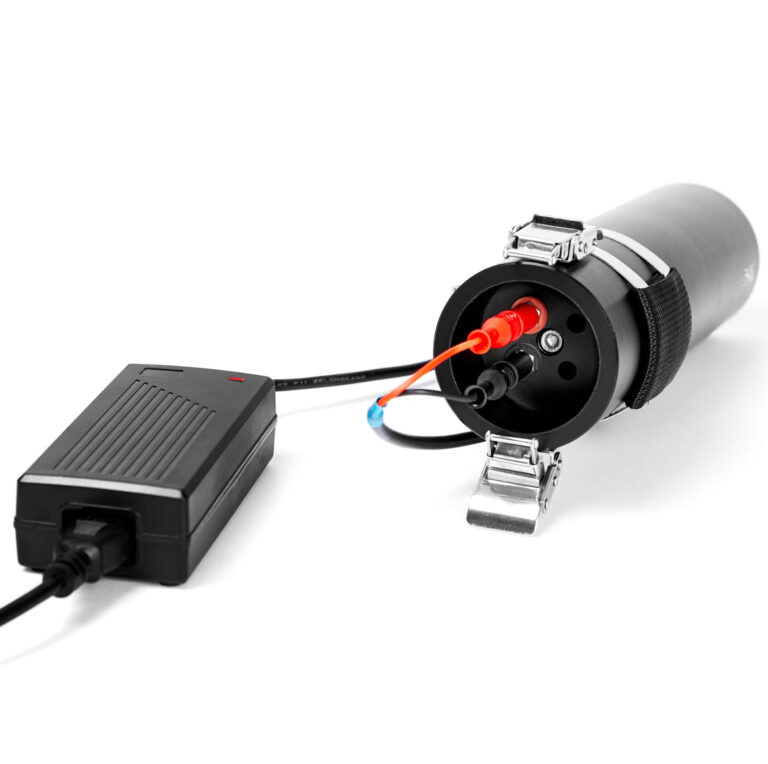

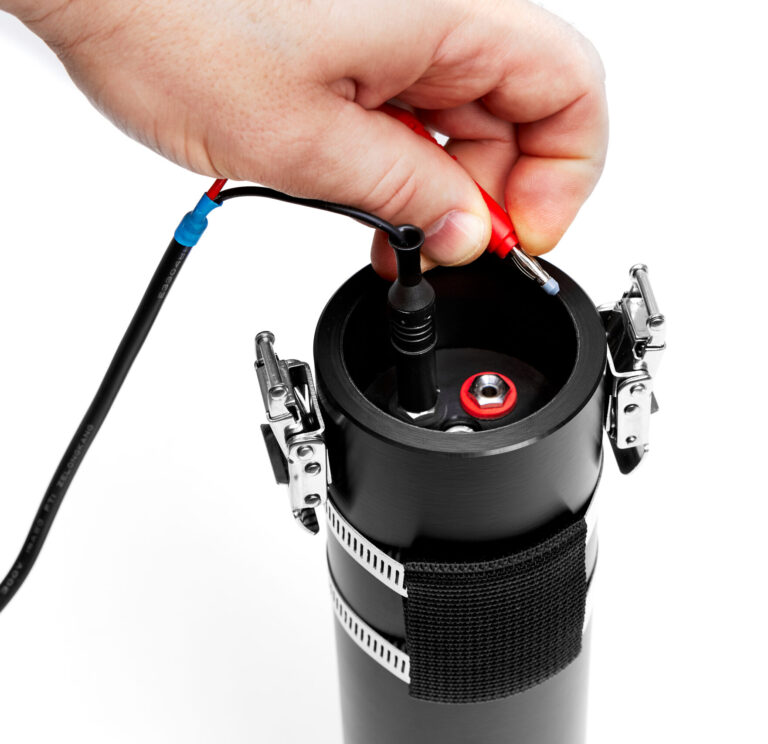

  • Banana connectors inside the canister
  • Canister dimensions (D/H):
  • Standard cable length: 1m* or according to customer requirements
  • Made of: Delrin
  • Certificate: UN38.3
  • Max operating depth: 150m

* option: E/O cord 1,0m (65cm/35cm) long or according to customer requirements

L20 (Classic) series lights, LED (Light-Emitting Diode) type, with a power of 20 Watts and a luminance of 1700 lumens, are equipped with heads with a fixed focus and lithium-ion (Li-Ion) battery packs with capacities from 9.6Ah up to 42Ah. They feature a classic switch with a rubber cap.

The color of the light emitted by LED diodes has a color temperature of 6500°K, which gives a slightly blue tint. Thanks to this, during diving, the point of light is better visible even in very bright water, which facilitates communication between divers.

A characteristic feature of the fixed-focus head is a highly focused (10°) beam of light with a distinct glow. It is an excellent basic light for diving in caves, wrecks or oceans.

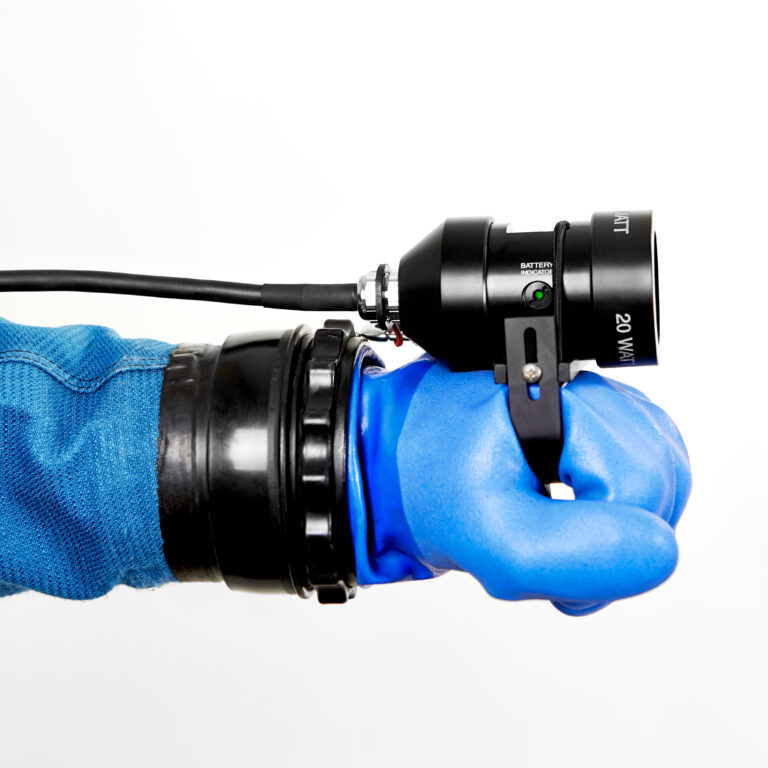

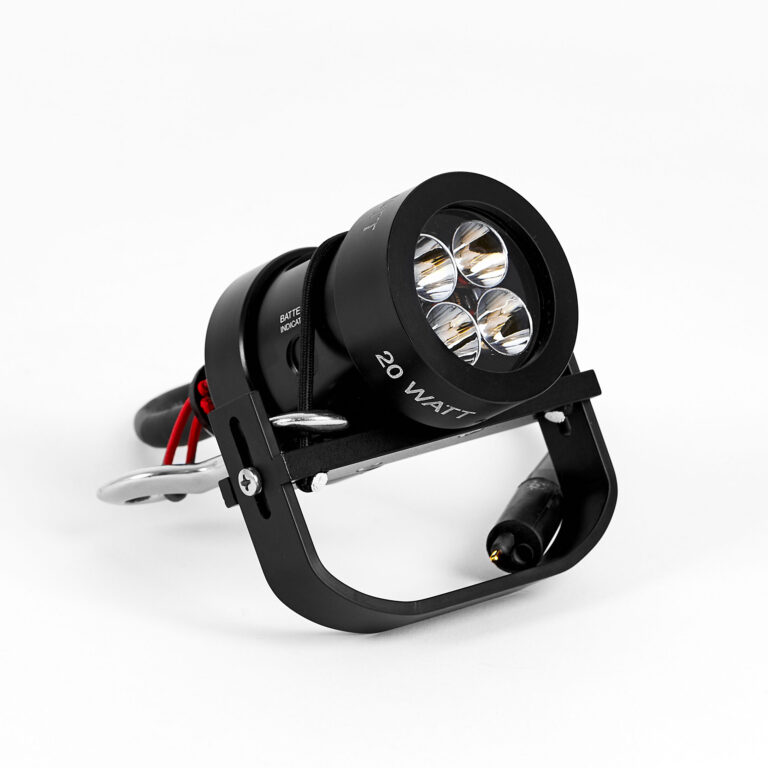

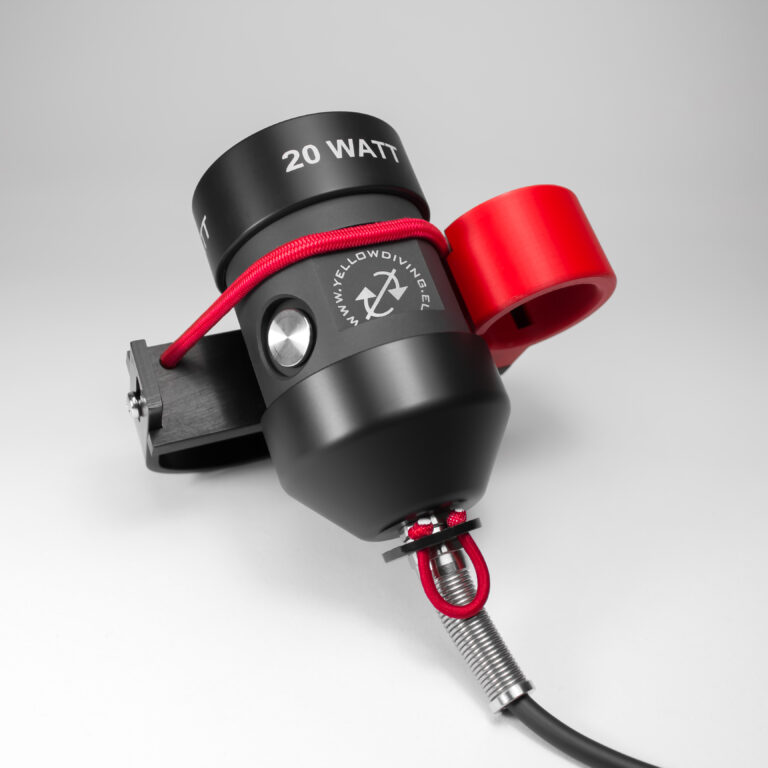

The Goodman’s handle is wide enough to use with dry gloves in cold water. The handle is height adjustable and the thread is reinforced so that it does not corrode under the influence of salt water.

It is also equipped with a rubber cord that allows for a more convenient change of the hand holding the light head while riding the scooter.

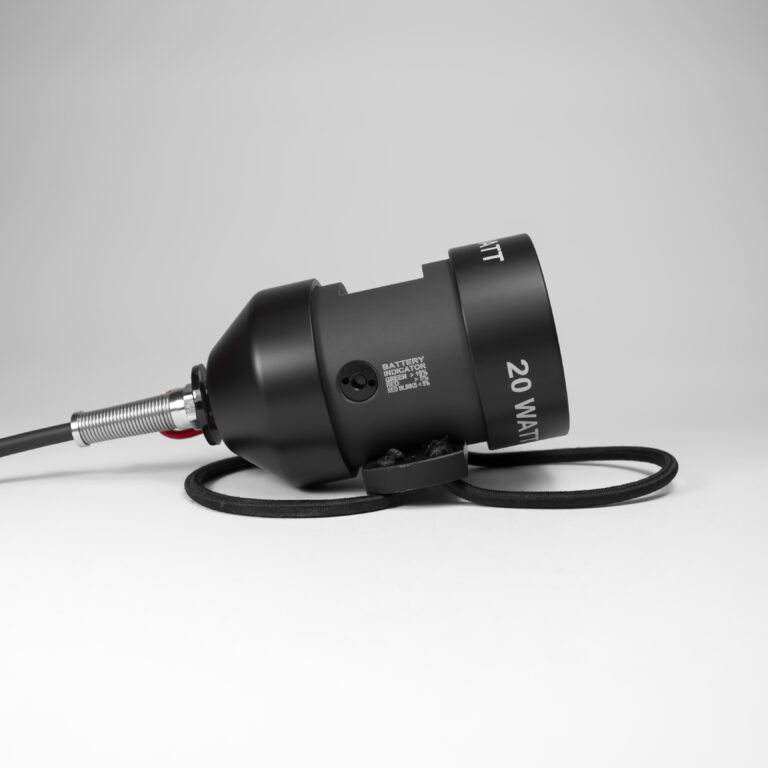

The L20 (Classic) flashlight head has a built-in LED indicator, located on the right side of the head and marked „battery indicator”.

The LED shows the battery’s health status and provides information about the current battery charge level.

When the battery is turned on, the LED indicates the following modes:

  • continuous green: 100% – 16% of charge capacity;
  • continuous red: 15% – 6%;
  • red, intermittent: 5% – 0.1%;
