LIGHT HEAD
- Power with 3-step regulation: 35W/40W/75W(35+40)
- Light angle: 12°/120°
- Colour temperature: 6500°K
- Luminance: 3600lm / 4400lm/ 8000lm
- Battery indicator: displays the current battery charge level
- Angles of light: shows a different angle of light beam
- E/O cord: 35cm or according to customer requirements
- Head dimensions (L x D): 10,5 cm x 6,3 cm
- Made of: anodised aluminium, Delrin
- Type of handle: Goodman
- Max. operating depth: 150m
POWER SUPPLY
- Configuration: backmount
- Capacity: 15,6Ah/20,8Ah/28Ah/42Ah
- Switch type: illuminated red CLASSIC toggle switch
- Nominal voltage: 11.1V
- Voltage range: 7.8V to 12.6V
- Protections: against overcharge, overdischarge, overdrain and short circuit
- Standard non-detachable cable length: 1m* or according to customer requirements
- Equipped with: banana connectors
- Made of: anodised aluminium, Delrin
- Max operating depth: 150m
* E/O option: 2 x E/O cord 1m, heating 65cm/lighting 35cm long or according to customer requirements

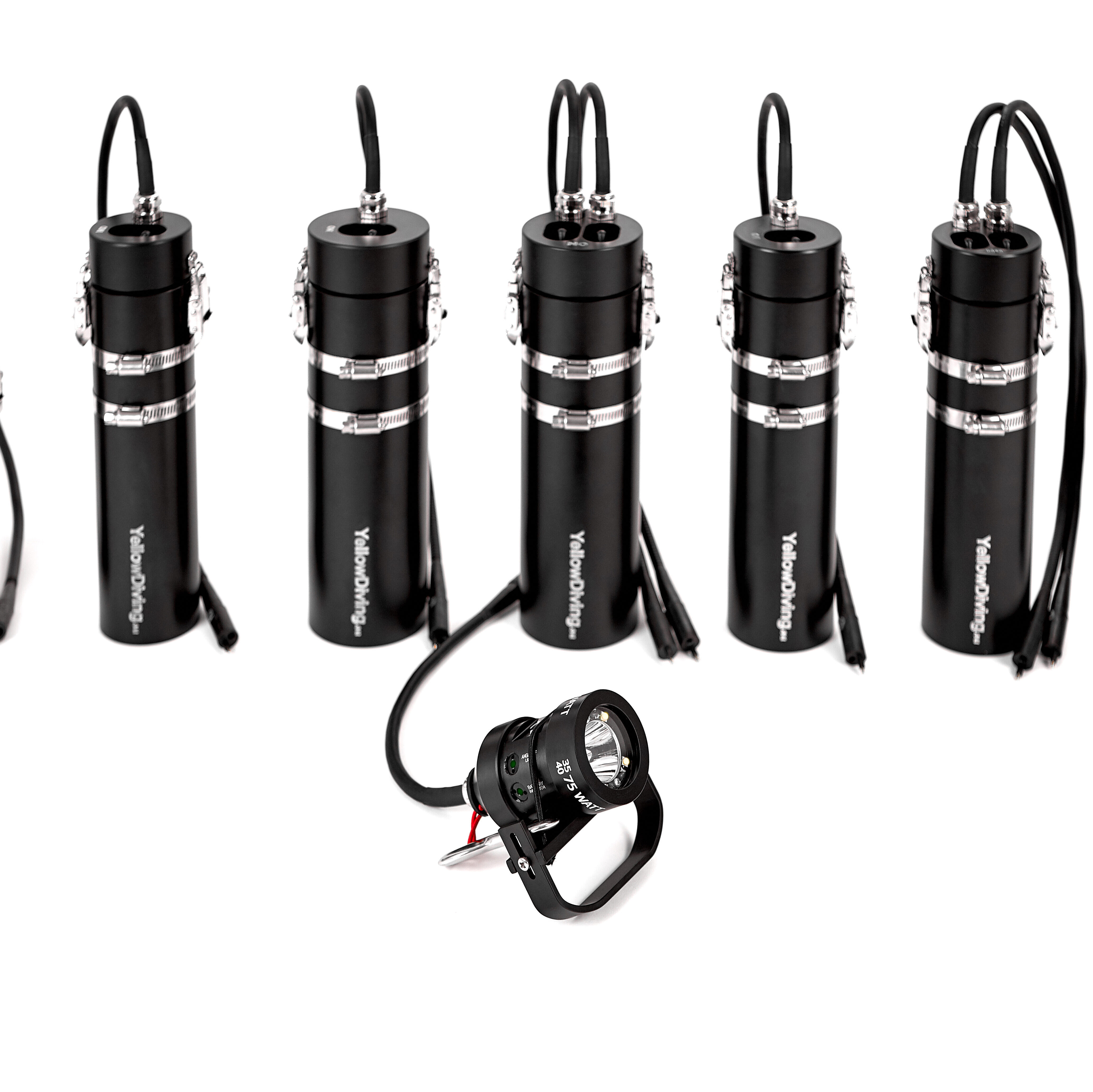

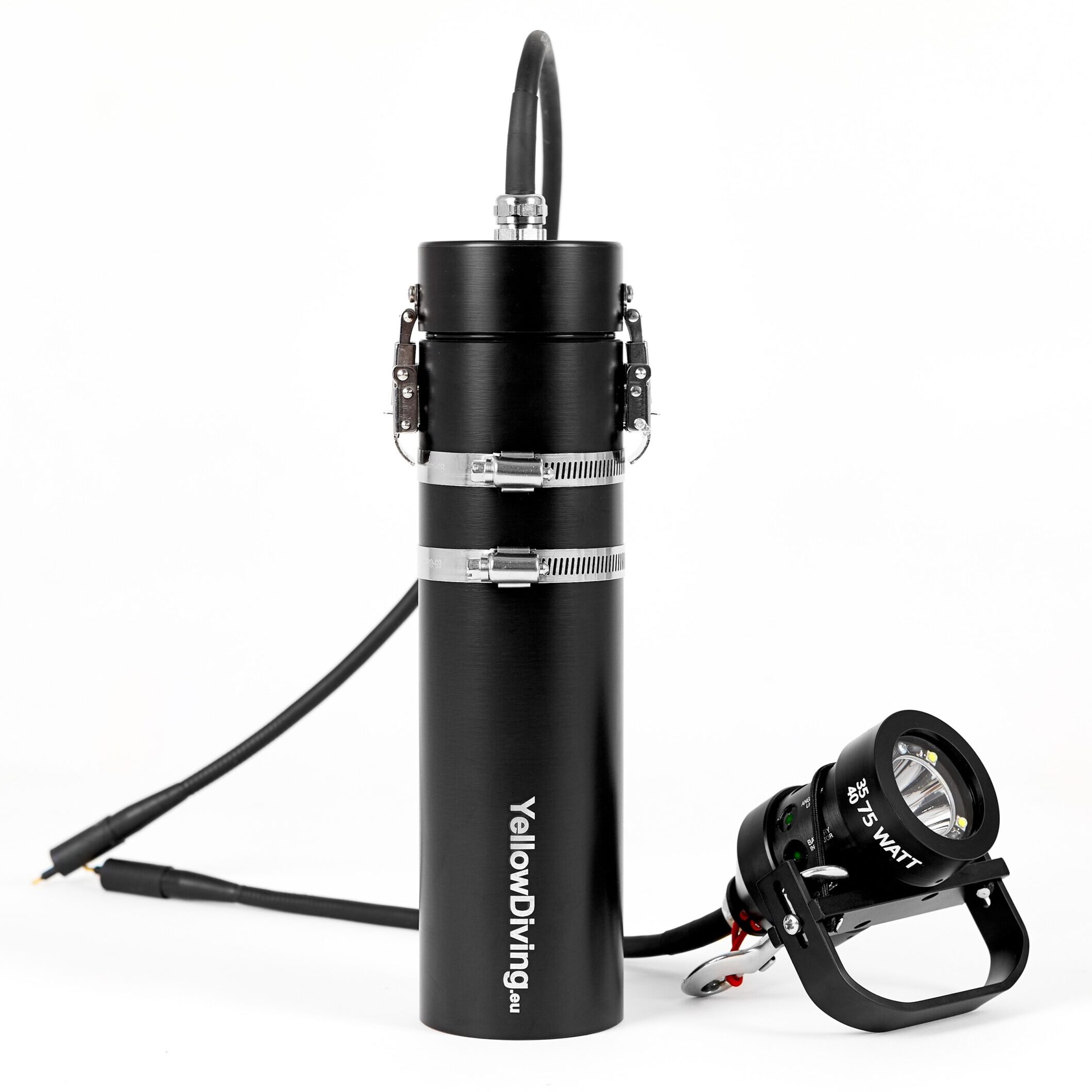

L75 (Classic) backmount series lights, LED (Light-Emitting Diode) type, with a power of 75 Watts and a luminance of 8000 lumens, are equipped with heads with a power with 3-step regulation: 35W/40W/75W(35+40) and lithium-ion (Li-Ion) battery packs with capacities from 15,6Ah up to 42Ah. They feature a classic switch with a rubber cap.
There are two independent LEDs module.
„Angles of light” indicator shows a different angle of light beam. The indicator is located on the right side of the head. The modes lights work both together or separately. LED diode provides information on the current angle of light.
It lights in one of the following modes:
- green – 35 Watt/ 12°
- red – 40 Watt/ 120°
- yellow – 75 Watt both channels of driver together
You can switch between modes by using switch on/off.
When you turn the light off, you have 5 seconds to turn it on again then the mode changes. If you turn it off forlonger period (more than 5 seconds), the light will work in it’s first mode (35 Watt, 12°).
The battery indicator shows the level of the battery charge. Labelled „LED indicator”. The LED indicator is located on the rightside of the head. The LED light indicates the battery performance status and providesinformation on the current battery level.
When the battery is switched on, the indicator lights in one of thefollowing modes:
- green, continuous: 100 % – 15 % of charge capacity
- red, continuous: 15 % – 5 %
- red, intermittent: 5% – 0,1 %
