LIGHT HEAD
- Power with 3-step regulation: 35W/40W/75W(35+40)
- Light angle: 12°/120°
- Colour temperature: 6500°K
- Luminance: 3600lm / 4400lm/ 8000lm
- Battery indicator: displays the current battery charge level
- Angles of light: shows a different angle of light beam
- E/O cord: 35cm or according to customer requirements
- Head dimensions (L x D): 10,5 cm x 6,3 cm
- Made of: anodised aluminium, Delrin
- Type of handle: Goodman
- Max. operating depth: 150m
Optional: goodman, soft goodman or 1” ball-handle.
POWER SUPPLY
- Configuration: sidemount
- Capacity: 20,8Ah/28Ah/42Ah
- DUAL Switch type: 2 x piezo push button
- Dual E/O option: 2 x E/O cord 85cm long or according to customer requirements
- Nominal voltage: 11.1V
- Voltage range: 7.8V to 12.6V
- Protections: against overcharge, overdischarge, overdrain and short circuit
- Equipped with: banana connectors
- Made of: anodised aluminium, Delrin
- Max operating depth: 150m
*Option: 85 cm E/O cord for heating / 1,2 m fixed cable for lighting or according to customer requirements

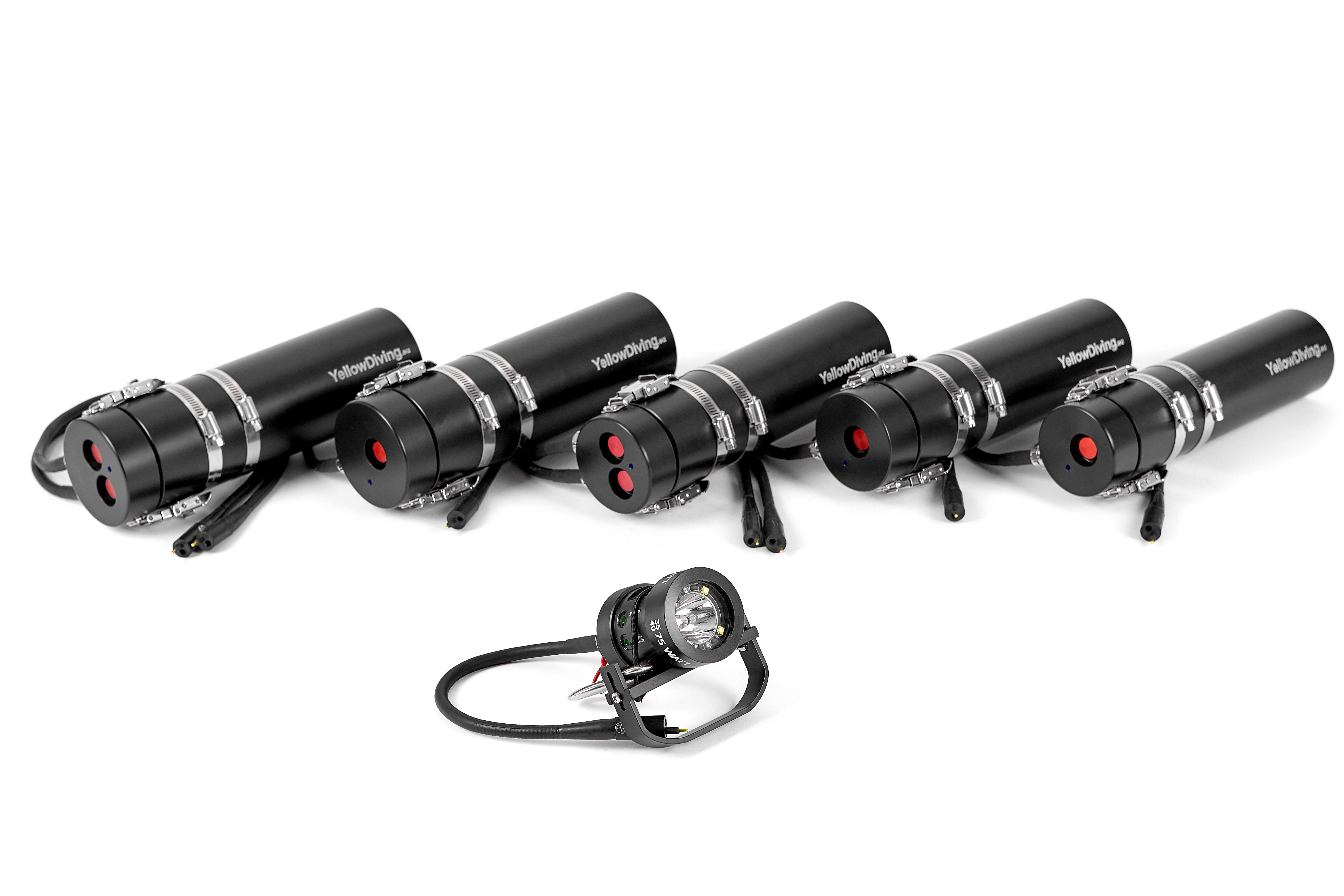

Primary diving light series with Light-Emitting Diode (LED) lighting technology 35Watt/40Watt/75Watt – 3600lm/4400lm/8000lm, are designed with changeable focus light head 12°-120°, additional piezo switch and heating supply E/O cable and Li-Ion battery pack available in the capacity range from 20,8Ah to 40,8Ah. Used water-tight piezo push-button switch.
All the electronics is now located inside the light head, what allowed to manufacture shorter canister and gives possibility to use the same battery canister as power supply for light heads YD series and electric heating.
The Goodman handle is wide enough to use with dry gloves in cold waters. Threads of the height regulation screws are enforced now to avoid corrosion in salt water. Bungy line supplements the handle to allow easy changing of light-head hold while scootering. There is an eye-shaped piece of bungy line secured to the rotating ring located under the sealing gland, allowing to use a double-ender bolt-snap without a need of mounting it on the cable. When not in use, the light head could be temporarily attached to chest D-ring, with light beam directed downwards, without giving a dazzle. This way you can free your hands still having a dive light. Using attachments located on a goodman handle and bungy eye on rotating ring below sealing gland you can place your double-ender bolt snap inside the contour of the light head, what is very useful when diving with reels and guidelines.
Banana connectors between battery pack and canister cover makes storing canister and preparing for diving easier. When canister cover is put in-place, the power supply is connected in easy way. The battery charger cable has long connectors with moving funnel covering the metal connector, what avoids short-circuit when connecting a charger. The cover could placed in two different positions – connected and not connected, what allow to secure the equipment during transport. This type of connections makes battery pack full water-tight up to 150m.
The battery indicator shows the level of the battery charge. Labelled „LED indicator„, The LED indicator is located on the rightside of the head. The LED light indicates the battery performance status and providesinformation on the current battery level.
When the battery is switched on, the indicator lights in one of thefollowing modes:
- green, continuous: 100 % – 15 % of charge capacity
- red, continuous: 15 % – 5 %
- red, intermittent: 5% – 0,1 %
There are two independent LEDs module. „Angles of light” indicator shows a different angle of light beam. The indicator is located on the right side of the head. The modes lights work both together or separately. LED diode provides information on the current angle of light.
It lights in one of the following modes:
- green – 35 Watt/ 12°
- red – 40 Watt/ 120°
- yellow – 75 Watt both channels of driver together
You can switch between modes by using switch on/off. When you turn the light off, you have 5 seconds to turn it on again then the mode changes. If you turn it off forlonger period (more than 5 seconds), the light will work in it’s first mode (35 Watt,12°)
